New design flat top panel printing pallet nestable pallet for paper stacking

Short Description:

1.Nestable pallets suitable for Packaging and Printing Services;

2.Packaging Auxiliary Material;

3.use for Packaging Machine;

4.widely used for Paper Packaging;

5.used by Pharmaceutical Packaging;

6.Logistics Packaging Printing Materials.


Product Detail

Product Tags

(1) The corner design is rounded, and printing pallet has no sharp corner design to prevent bumps and injuries;

(2) The grooves on both sides of the panel are designed to facilitate the use of rolling belts to bind the goods and prevent the goods from slipping during transportation;

(3) Pallet of the same type can be stacked and stored, saving floor space;

(4) Seven-leg design, suitable for 450 four-way forklift, 550 long two-way forklift, 680 long two-way forklift;

(5) Hollow holes are arranged at the bottom of the foot column to prevent water accumulation;

(6) The increase of four-side tensile reinforcement makes it resistant to impact and not easy to deform, and the bearing capacity is stronger and more stable;

(7) The side of the pallet is the customer's trademark area, and the customer's trademark and other information can be customized (screen printing LOGO, etc.);

Product Introduction

Container solution while also being lightweight and durable.

(1) The rounded corner design prevents users from being injured by bumps and enhances the impact resistance of the pallet;

(2) The flat surface can be set with feet structure design, the flat surface is not easy to damage the goods, and the pallets can be stackable and stored to save space;

(3) The grooves on both sides of the panel are designed to facilitate the use of rolling belts to bind the goods and prevent the goods from slipping during transportation;

(4) Using high-density polyethylene (HDPE) raw materials, the product is Hygienic and clean  , non-absorbent, moisture-proof, mildew-proof, anti-corrosion and insect-resistant, and has no nails and no thorns.
Chip removal, recyclable;

(5) It is not easy to collapse and deform, more firm, and has strong product stability, load-bearing, cold resistance and heat resistance;

(6) The mesh-type tie bars on the bottom surface are increased, and the four-side tensile rib is increased, so that the impact resistance is not easy to be deformed, and the bearing capacity is stronger and more stable;

(7) The workmanship is fine, the surface of the pallet must be flat, free of flash, no cracks and deformations that affect the use, and no burrs on the edges.
The mouth is flat.

Product Size Parameters

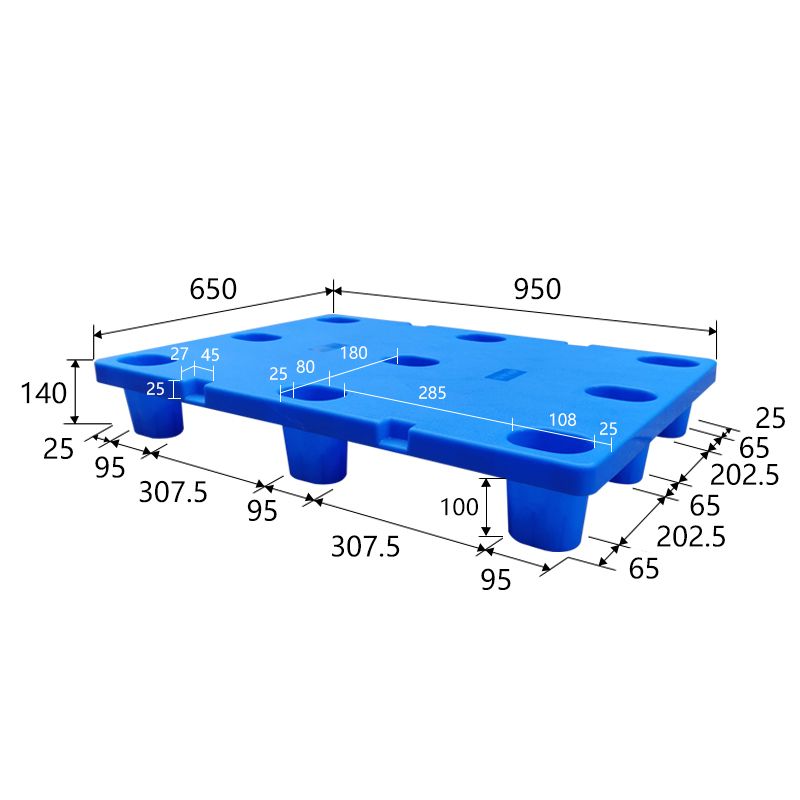

XF950-650-140

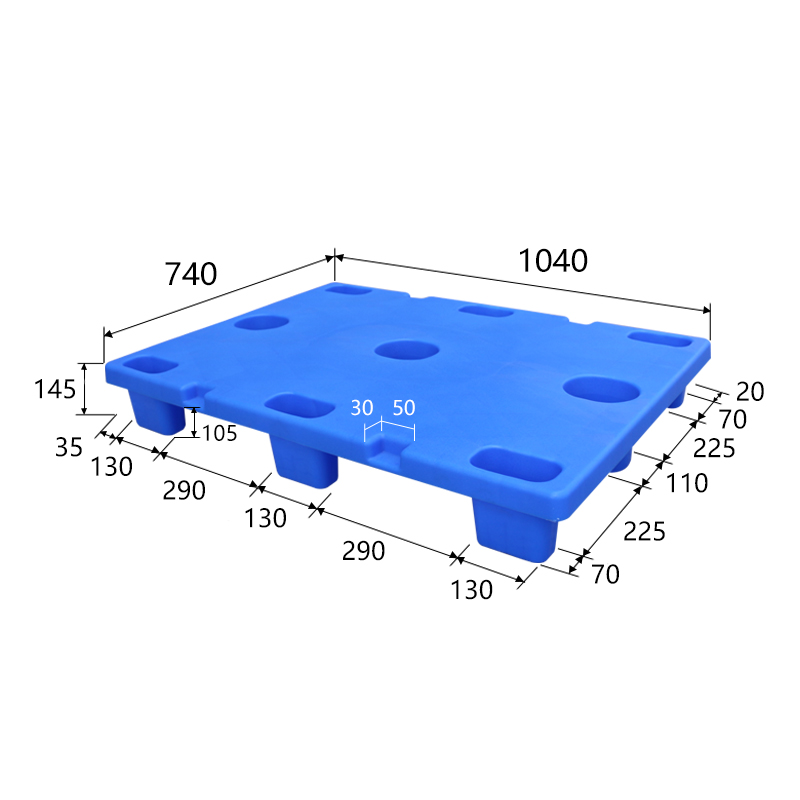

XF1040-740-145

Product Parameters

There are alot of size available for your choice.

Dimension(mm)

Load capacity(KGS)

QTY/Container

L

W

H

Weight

Dynamic

Static

Racking

20'GP

40'GP

1040

730

145

6.5KG

0.5T

1T

0T

560PCS

1120PCS

The flat-panel can be set with seven-legged pallet is suitable for printing, logistics, warehousing, food, printing, supermarket, medicine, chemical industry and other industries, Widely applicable.
