Short Description:

1.Nestable pallets suitable for Packaging and Printing Services;

2.Packaging Auxiliary Materials;

3.Packaging Machine;

4.Paper Packaging;

5.Pharmaceutical Packaging;

6.Logistics Packaging Printing Materials.


Product Detail

Product Tags

Product Features

(1) The surface of the pallet must be flat,no flash, no cracks and deformations that affect the usage, and no burrs on the edges.

(2) Integrated injection molding, single-sided flat design, four sides are convenient for manual extraction, and improve work efficiency;

(3) There is a slope design at the entrance of the bottom surface, which is convenient for entering the fork from all sides, and is suitable for various styles of forklifts;

(4) Using high-density polyethylene (HDPE) raw materials, the product is Hygienic and clean, non-absorbent, moisture-proof, mildew-proof, anti-corrosion and insect-resistant, and has no nails and no thorns. Chip removal, recyclable;

(5) It is not easy to collapse and deform, more firm, and has strong product stability, load-bearing, cold resistance and heat resistance;

(6) The cross section of the bearing surface of the product is a "T"-shaped rib structure, which increases the bearing capacity of the bearing surface. The "T"-shaped panel will not affect the packaging.
Extrusion marks are formed on the product, which is beneficial to protect the outer packaging of the product;

(7) The mesh-type tie bars on the bottom surface are increased, and the four-side tensile rib is increased, so that the impact resistance is not easy to be deformed, and the bearing capacity is stronger and more stable.

Product Parameters

There are a lot of size available for your choice.

Product size

1000mm×800mm×140mm

Loading capacity



Static load

2.0 tons

Dynamic load

1.0 tons

Product weight

 10kg±3%

The main raw material of the product adopts high-density polyethylene (HDPE)

Operating temperature

 -30℃～60℃

Panel Type

Flat

Bottom Type

Nine Feet

Surface

Flat face design

Bottom

Encrypted Stretch

Production process

injection molding

Which size is suitable for you?

Product Size Parameters

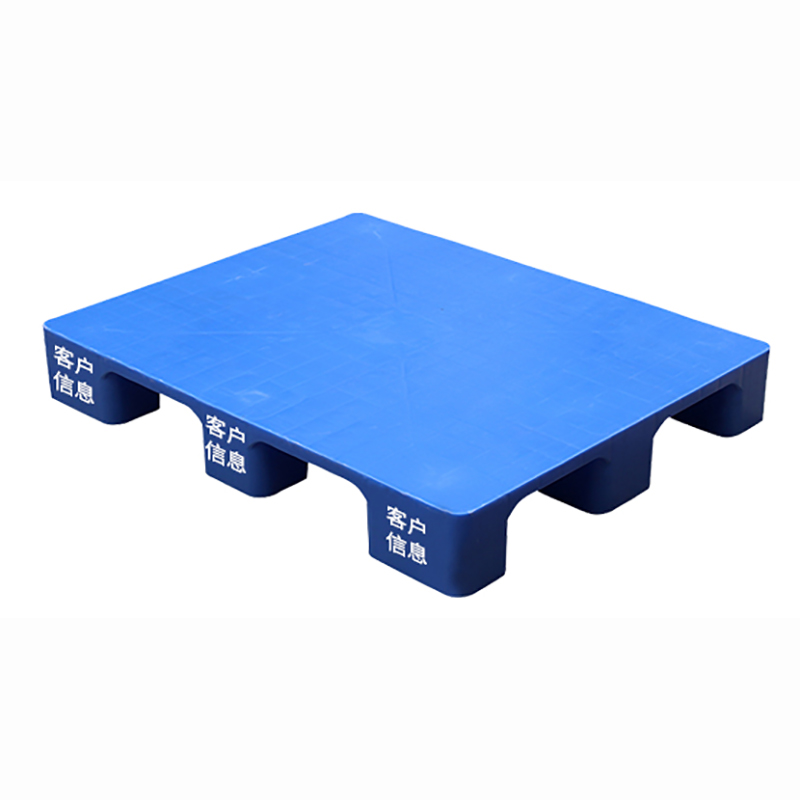

XF1008-140

XF1010-140

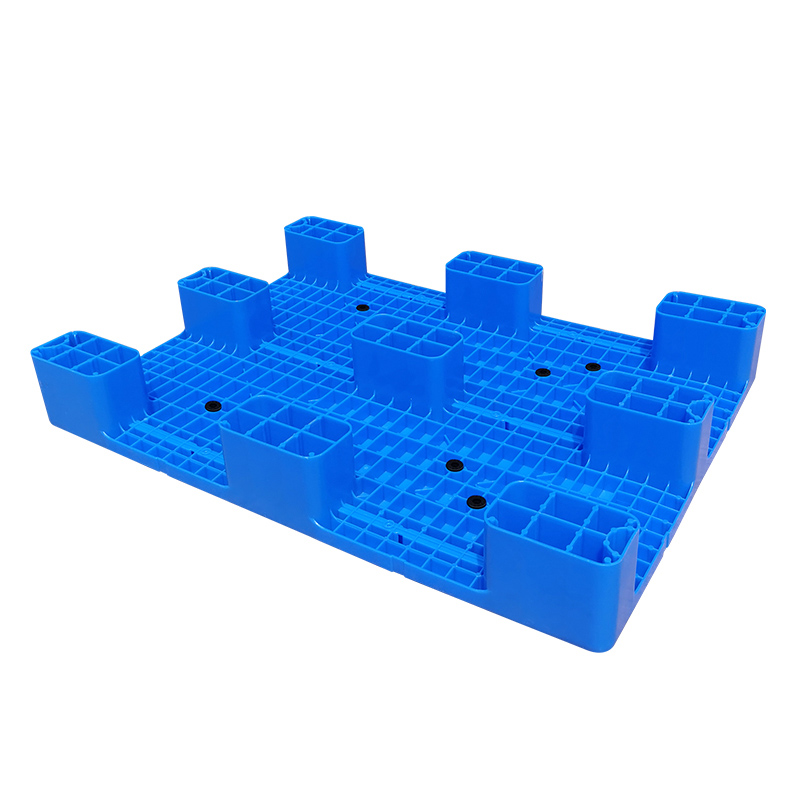

XF1108-160

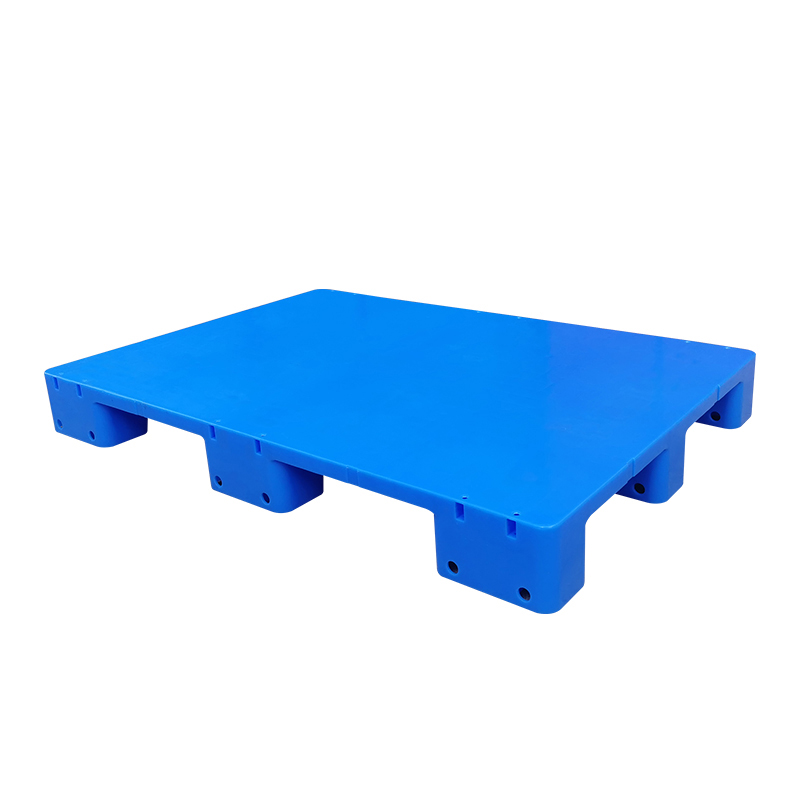

XF1208-140

(1) The pallets are easy to clean, and Hygienic for food packing;

Xf1008-140 Flat nine-foot printing tray3

(2) Nine-leg design, four-sided forklift usable, suitable for various forklifts;

(3) The inclined surface design at the entrance of the bottom surface is convenient for forklifts to enter and exit;

Xf1008-140-Flat-nine-foot-printing-tray5

(4) The bottom is reinforced, the edge ties are dense, impact resistance, not easy to deform, and stronger bearing capacity;

Xf1008-140-Flat-nine-foot-printing-tray4

(4) The bottom is reinforced, the edge ties are dense, impact resistance, not easy to deform, and stronger bearing capacity;

Applicable Industries

Flat nine-legged pallet is suitable for logistics storage, food, printing, supermarket, pharmaceutical, chemical and other industries, and is widely used.

Product Quality Standard

(1) Appearance:
The surface of the pallet is flat, no flash, no cracks and deformations that affect the use, no burrs on the edges, and smooth gates.

(2) Color:
There is no obvious color difference on a single pallet, and the color of the same batch of products is basically the same.

(3) Inspection standard:
Refer to GB/T 15234-1994 "Plastic Flat Pallets", the requirements other than the standard shall be agreed by both parties.

ODM

We also have ODM service, if none of the size above is suitable for you, we also can make for you a new design according to your drawing or sample or your requirement.
Please just send to us your inquiry,we can help you from 0 to 100.
From a photo to become a products, and organize for you the transportation and shipping, from our factory to your hand.
Just feel free to contact with us for more.

odm2

Company Information

Our company specializes in the solution of printing machines for more than 13 years,we offer printing pallets or non stop pallets for automatic feed and delivery sheetfed presses.,which help enterprises to achieve high efficiency and energy saving ,and standardized management.
